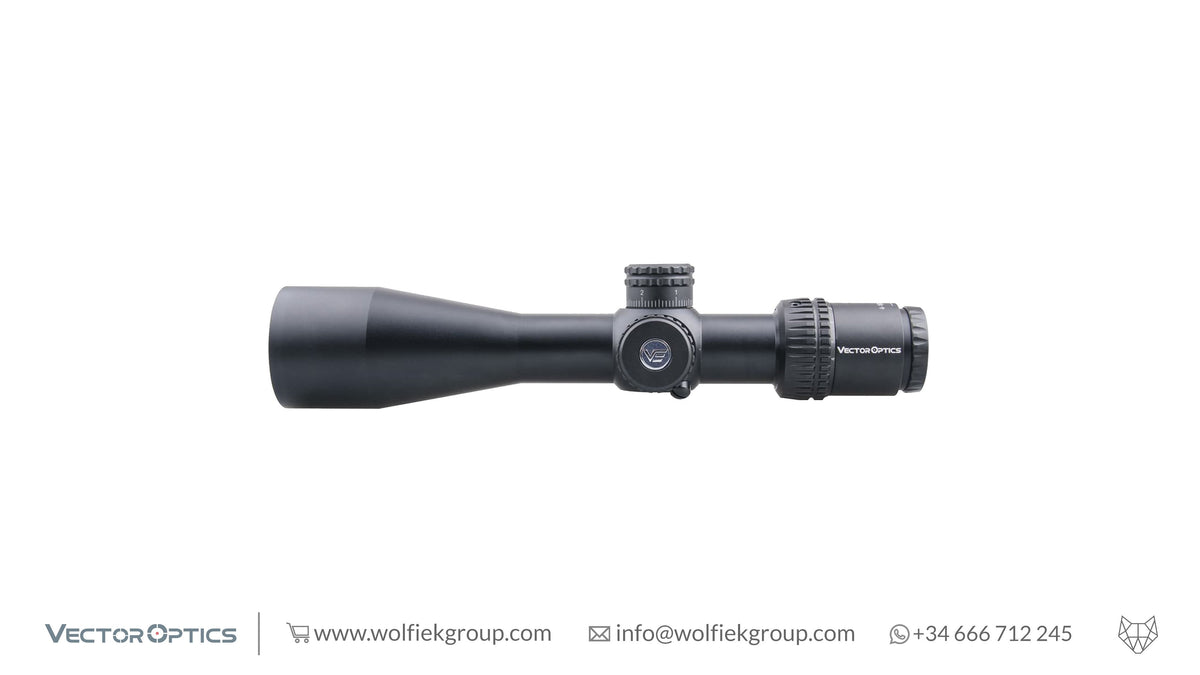

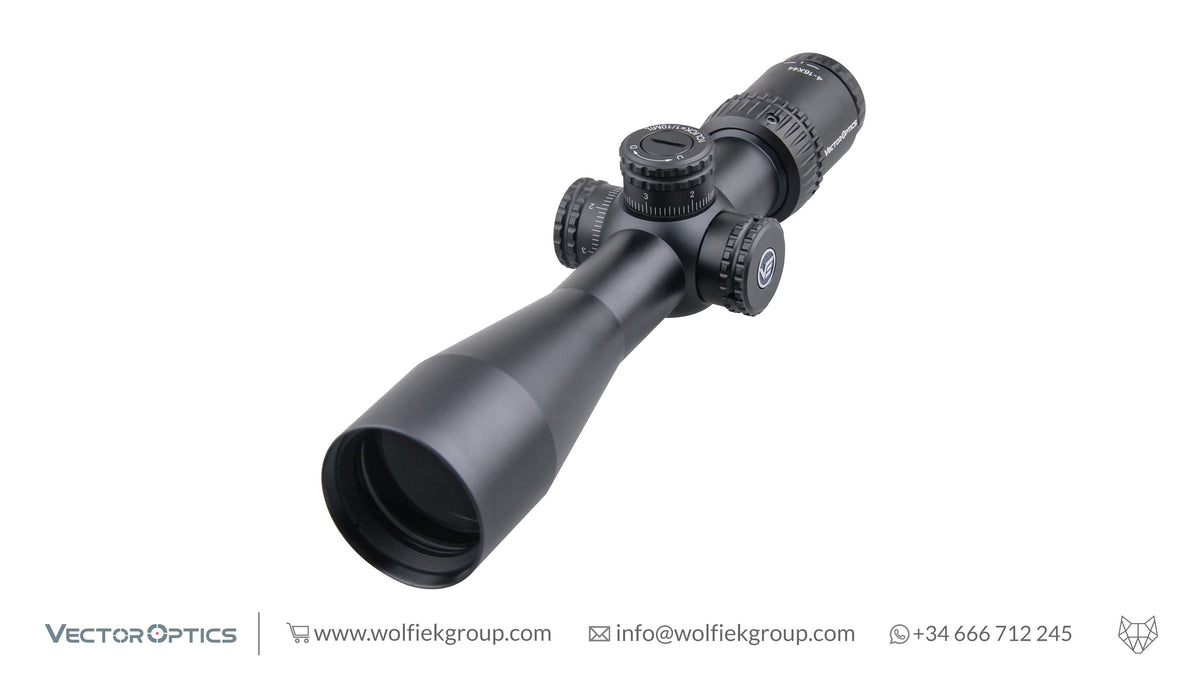

Vector optics scope 4-16x44 FFP

Vector Optics · Veyron 4-16x44 FFP

Vector Optics · Veyron 4-16x44 FFP

Vector Optics · Veyron 4-16x44 FFP

Vector Optics · Veyron 4-16x44 FFP

Vector Optics · Veyron 4-16x44 FFP

€257,00 - €277,00

Item: SCFF-22

Ultra short 270mm / 10.3"
Turret lock system
1/10MIL 1cm adjust side focus min @ 10 yds
30mm monotube
Magnification: 4-16x
Objective lens dia: 44mm
Ocular lens dia: 33mm
Ocular lens length: 35mm
Exit pupil: 11-2.75mm
Optics coating: fully-multi coated
Field of view: 26.2-6.55 feet@ 100 yds
Field of view: 5-1.25°
Eye relief: 90-85mm (3.5-3.4")
Length: 270mm / 10.6"
Weight: 570g / 20oz
Click value: 1/10MIL, 1cm
Elevation range: 17.5MIL
Windage range: 17.5MIL
Parallax setting: 100 Yds
Side focus: 10 yards to infinite

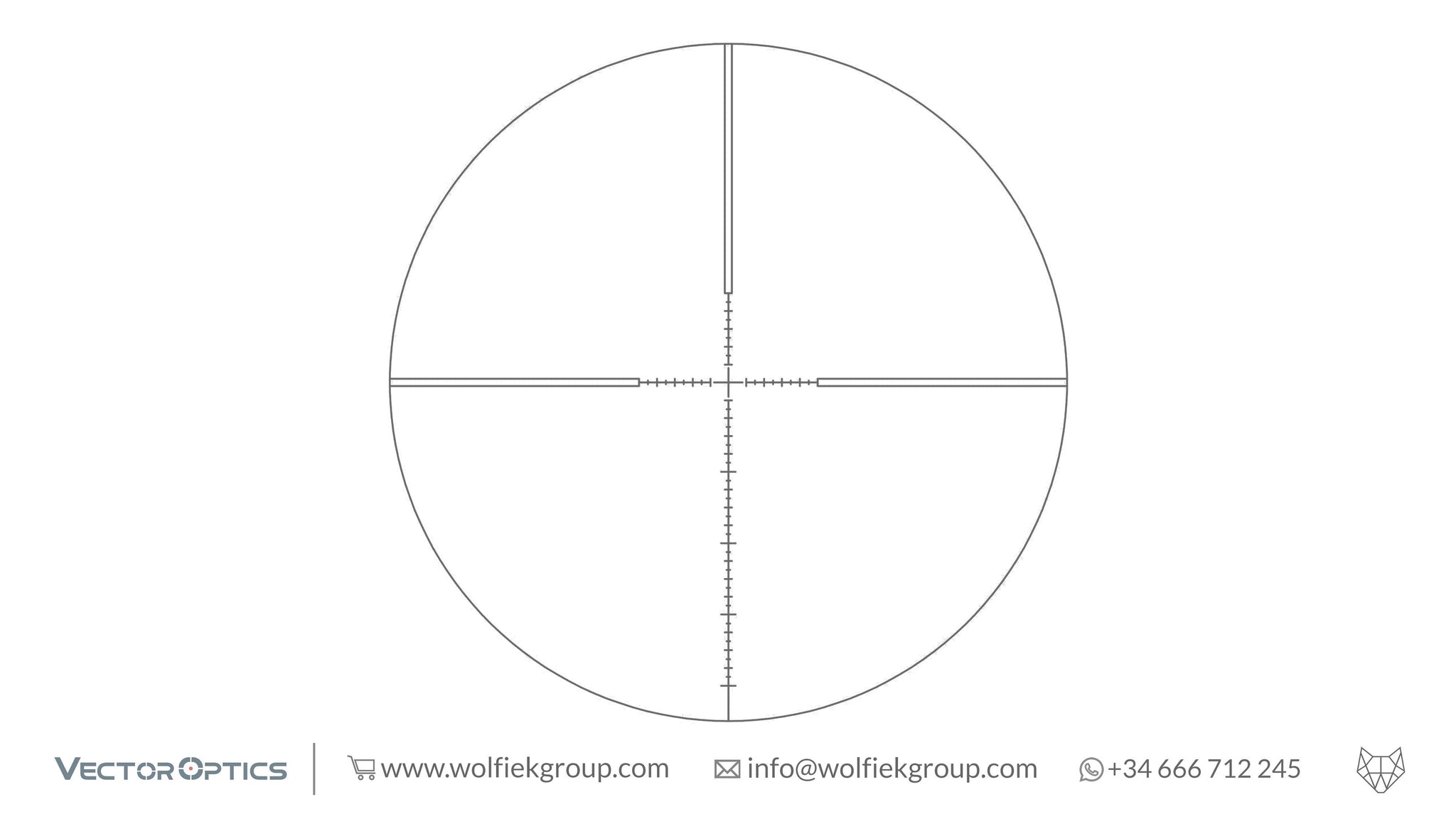

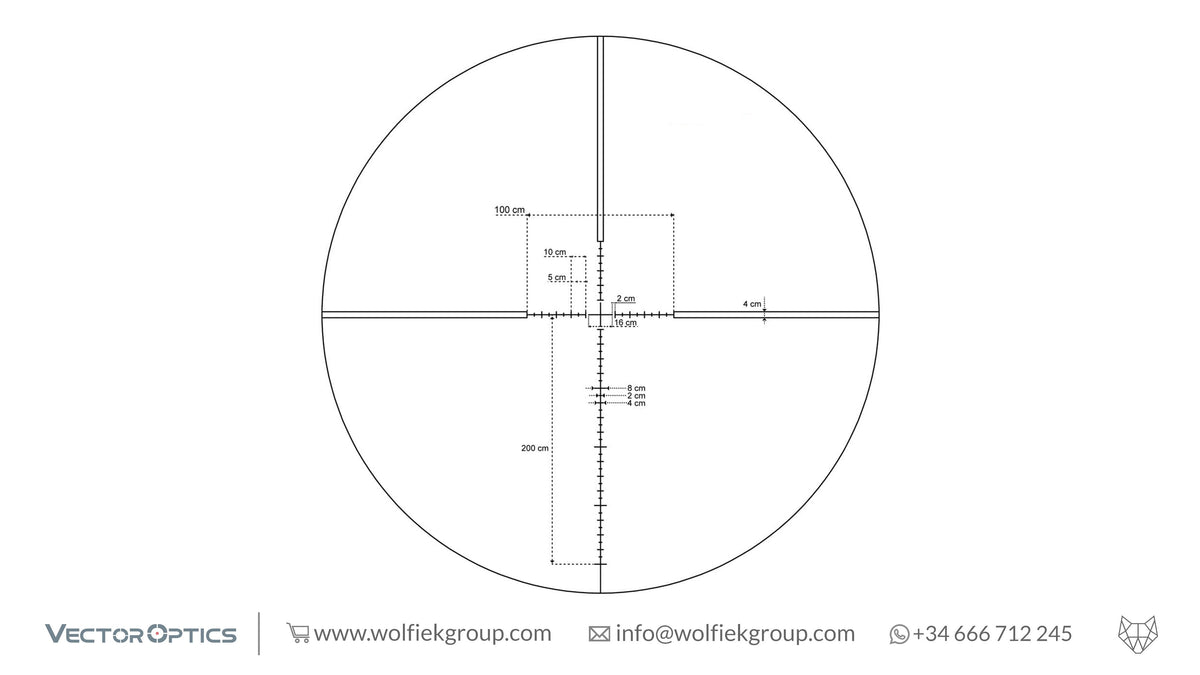

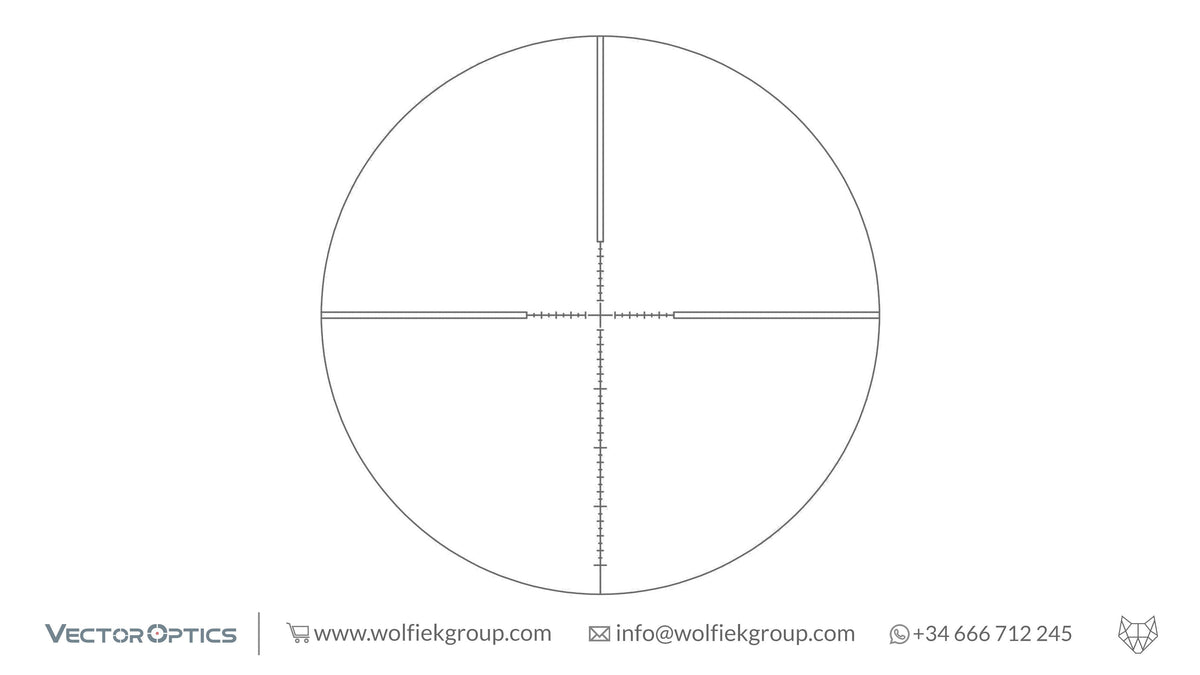

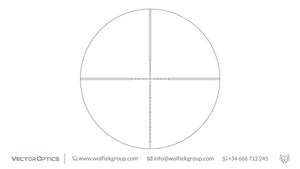

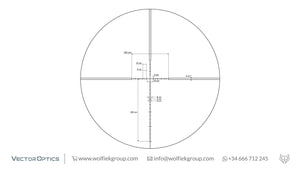

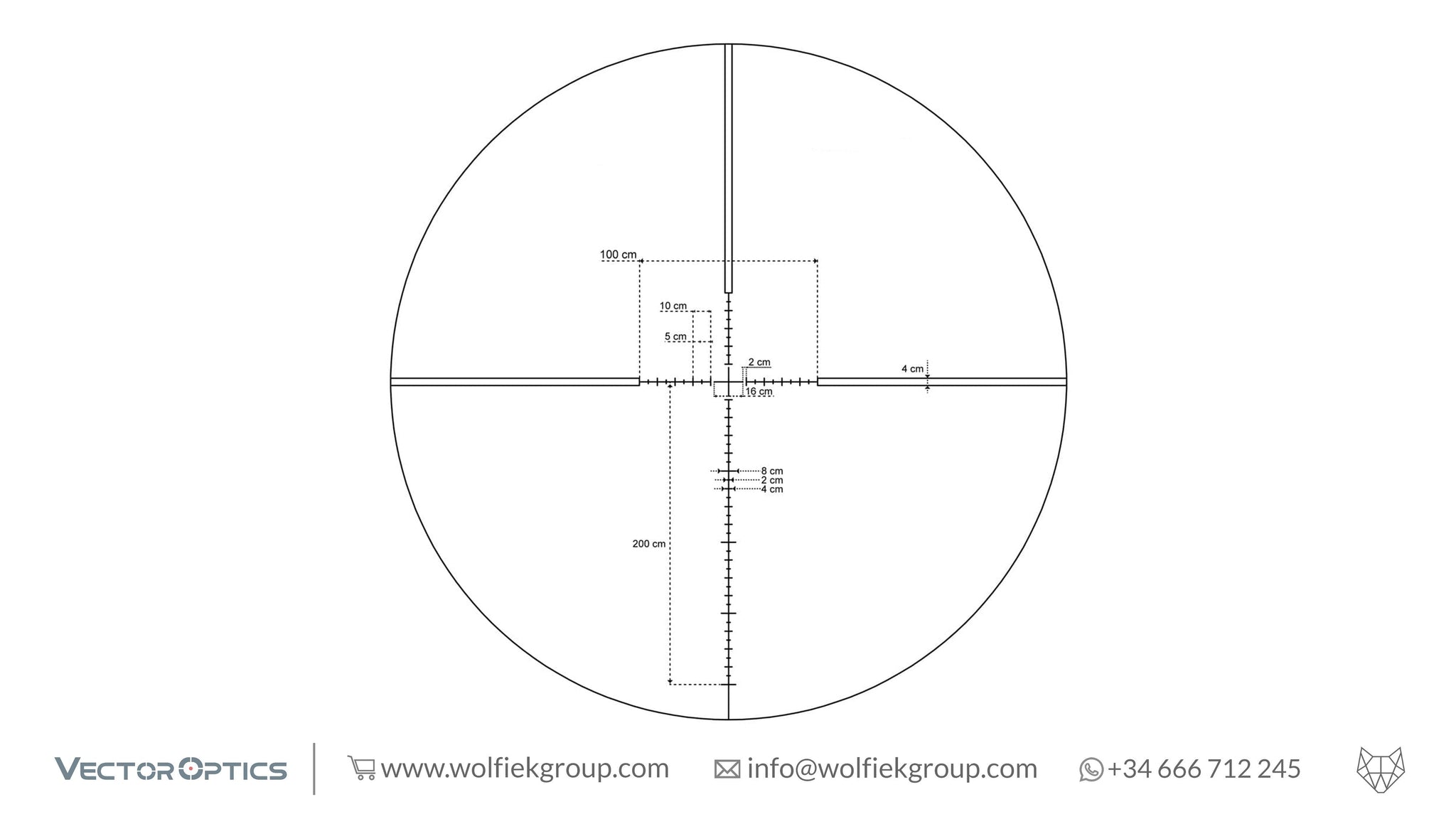

Reticle: Etched MPR-4
Finish: black matte
Illumination: N/A
Distance between objective lens part and middle turret: 40mm (1.6'')
Length of middle turret part: 37mm (1.4'')
Distance between middle turret part to power ring: 32mm (1.3'')
Shock tested to 750g, waterproof at 1m
Fully nitrogen purged to eliminate any fogging of the lenses internally

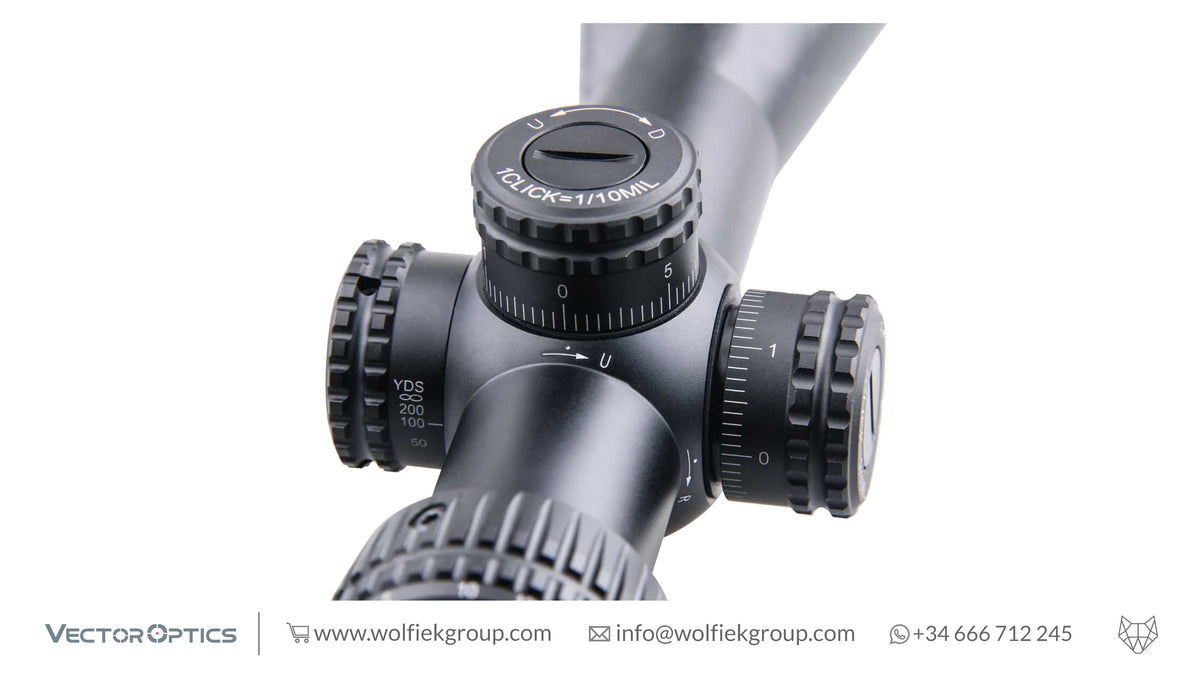

Turret Lock System
High quality 6061 T6 aircraft grade aluminum
Focus mark: 10, 15, 25, 50, 100, 200 and infinite
Diopter compensation from fast-focus eyepiece (+2 to -2)
Including items: flip-up caps, honeycomb sunshade and cleaning cloth
Optional: weaver rings or dovetail rings
