Vector optics scope 3-12x44 SFP

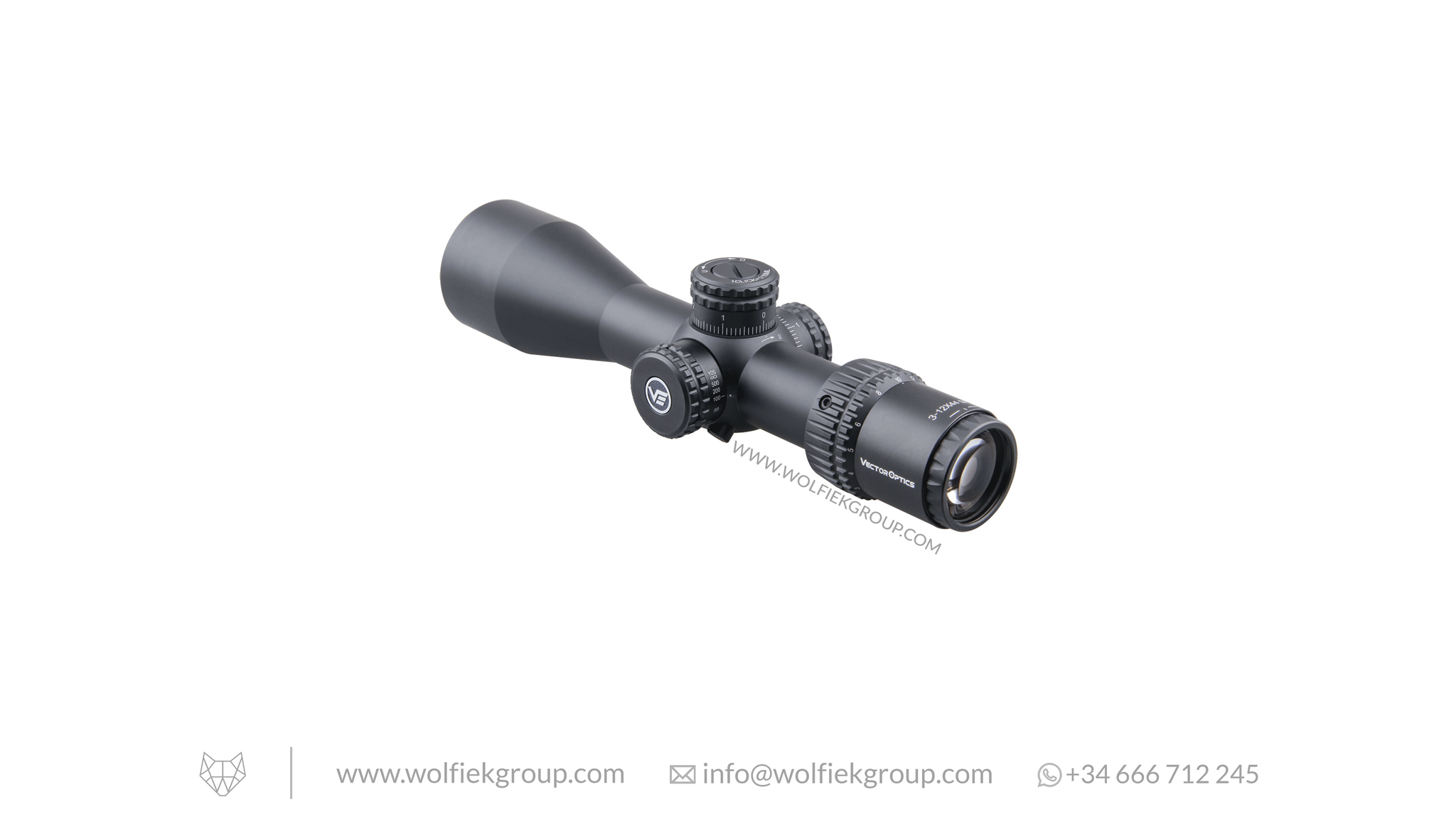

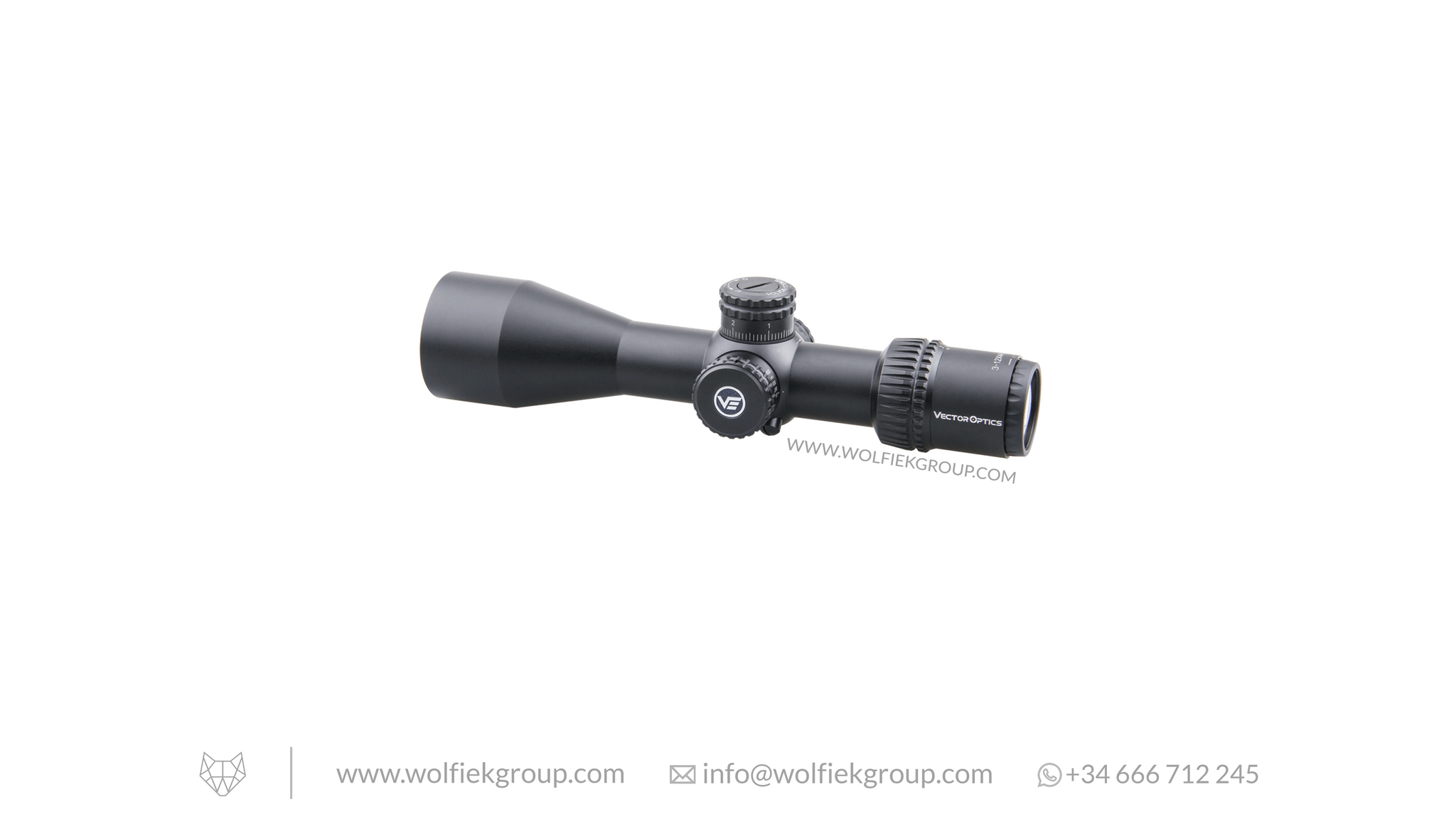

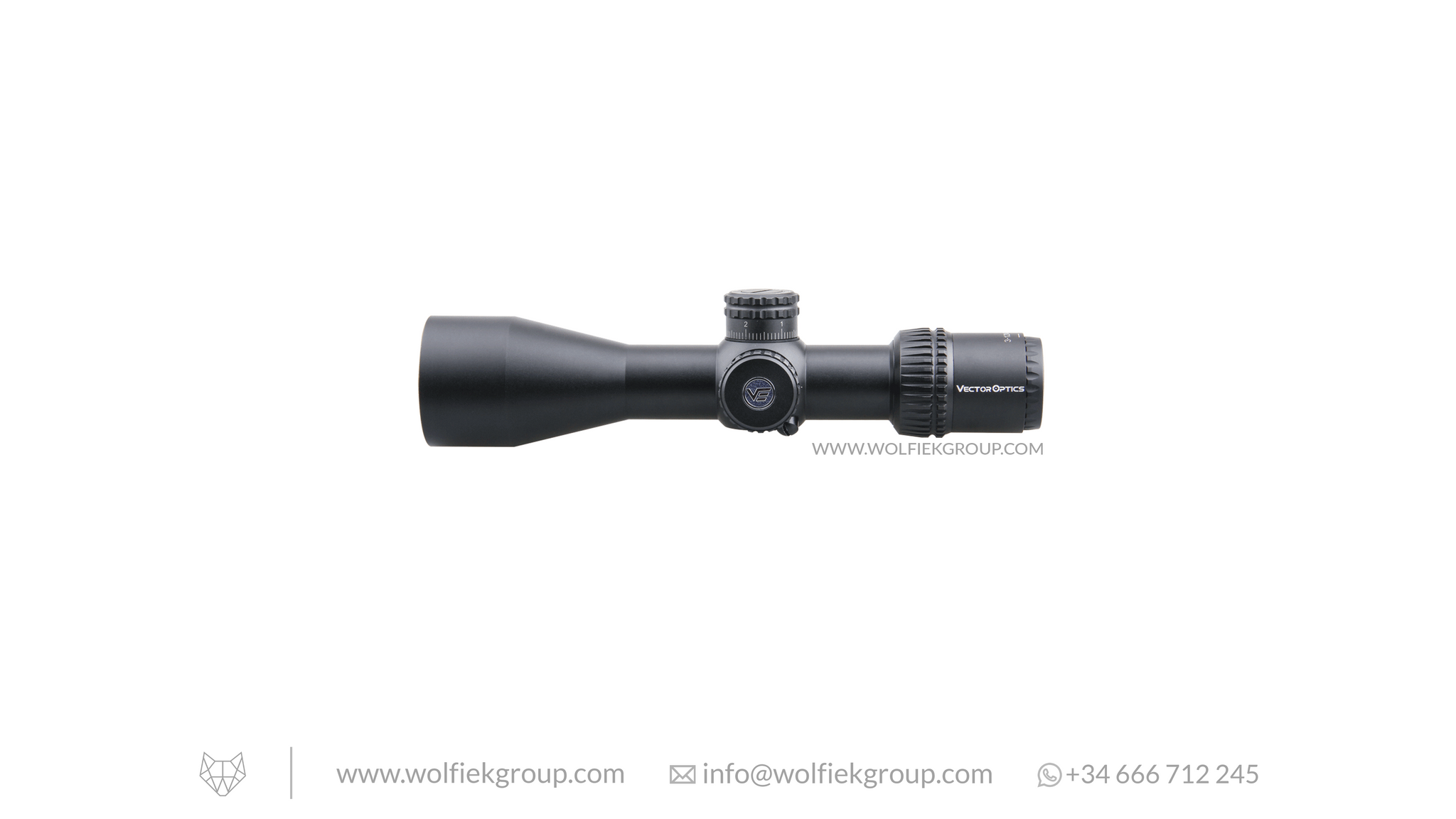

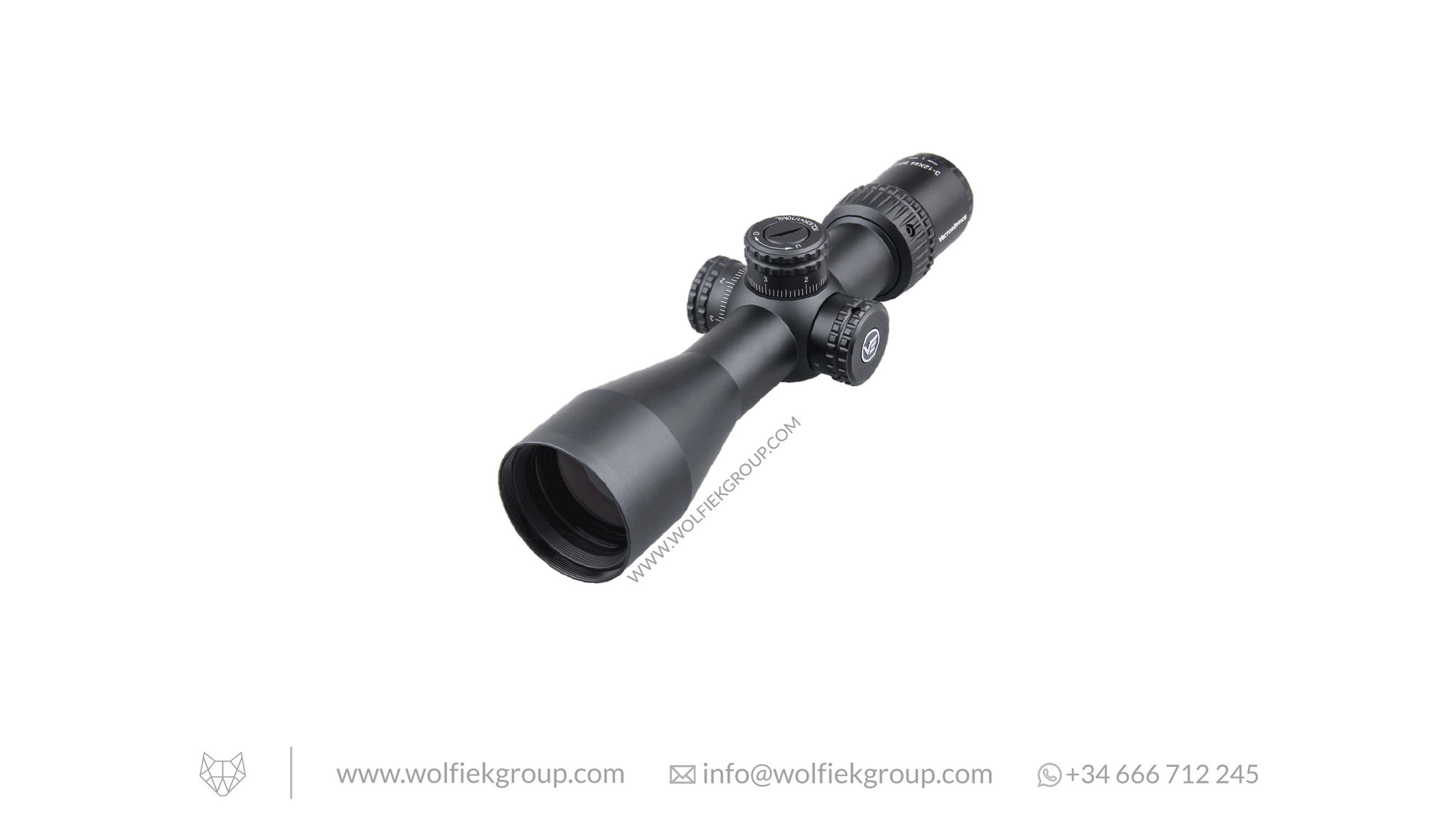

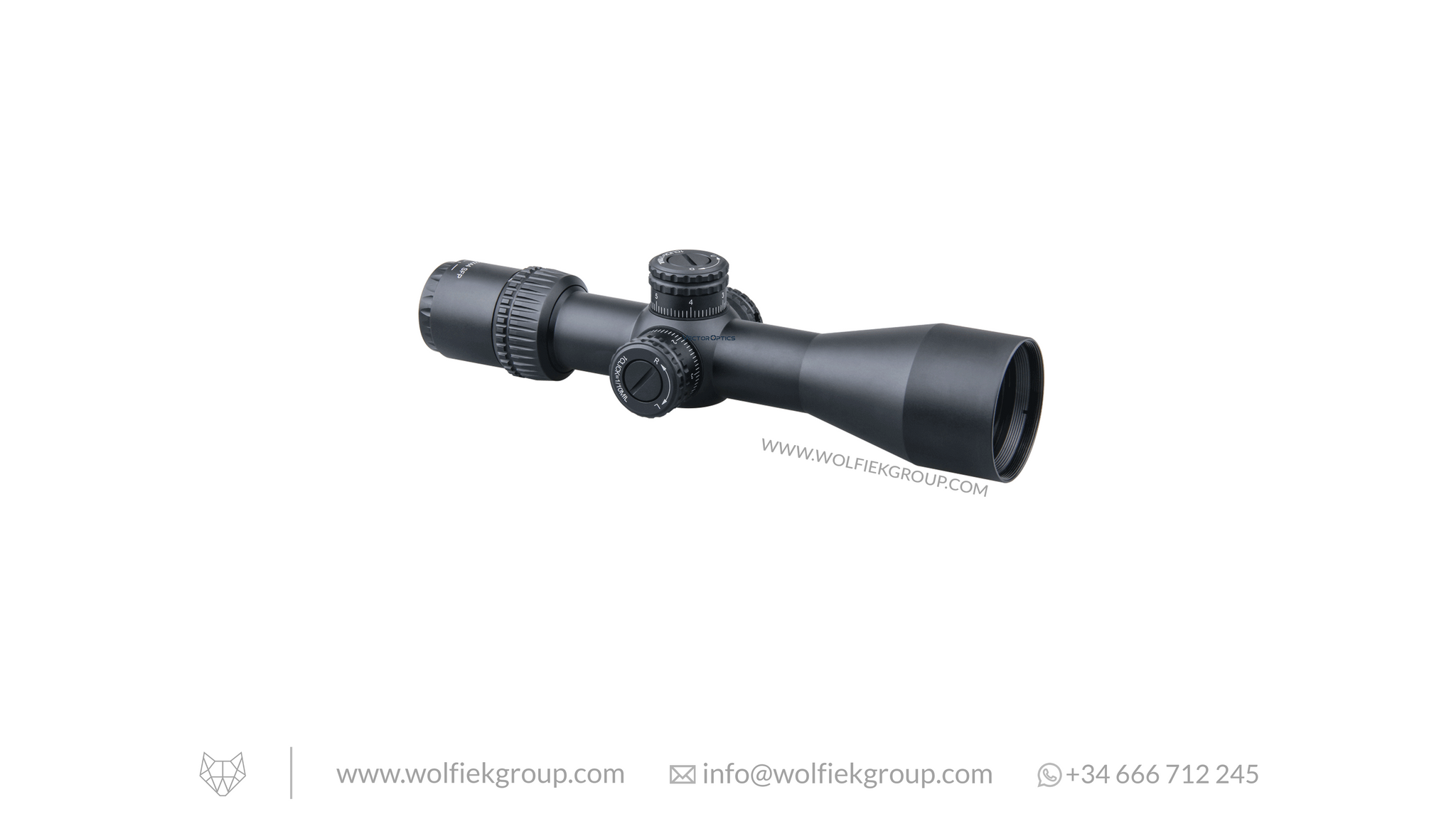

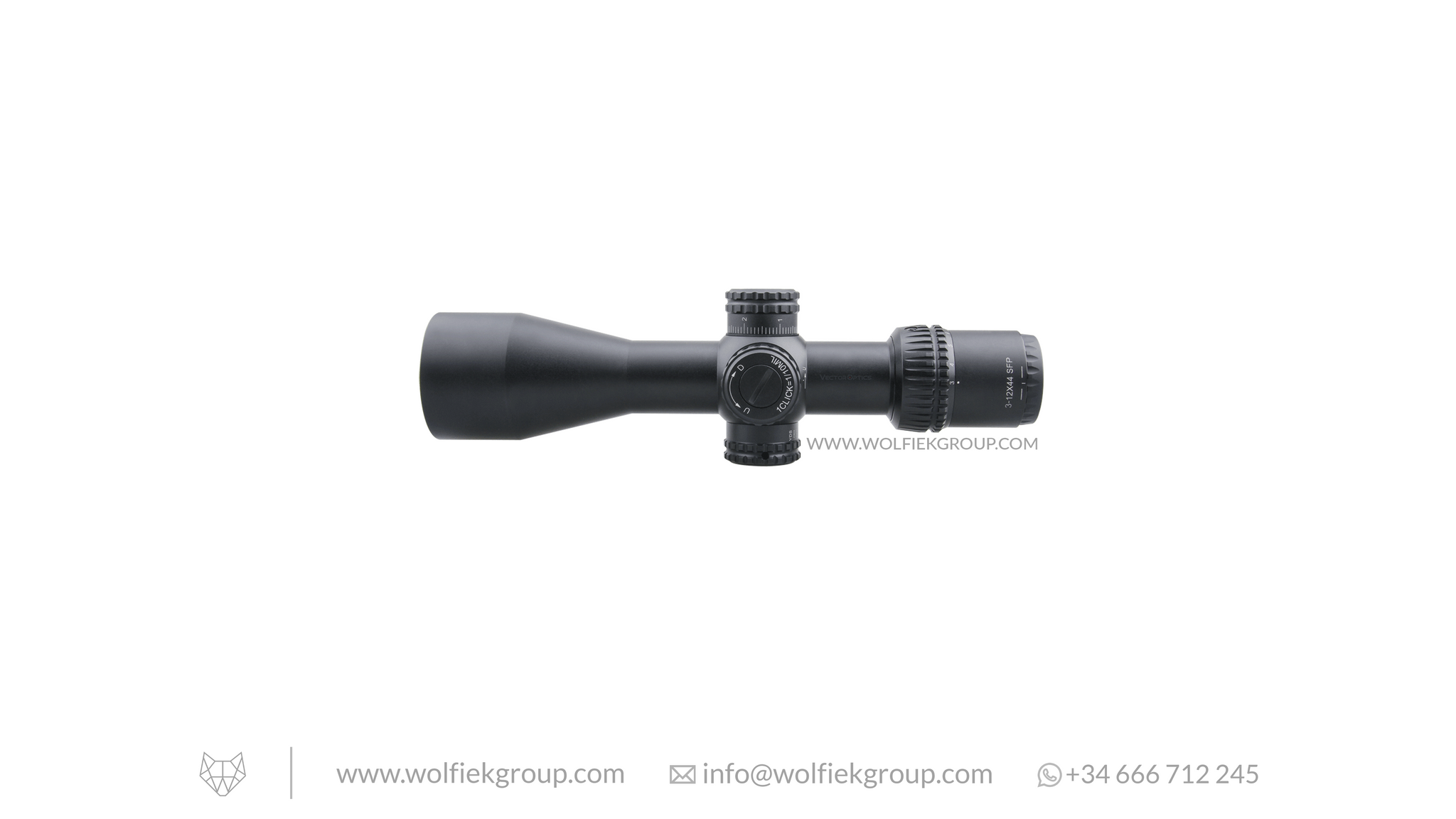

Vector Optics · Veyron 3-12x44 SFP

Vector Optics · Veyron 3-12x44 SFP

Vector Optics · Veyron 3-12x44 SFP

Vector Optics · Veyron 3-12x44 SFP

Vector Optics · Veyron 3-12x44 SFP

Vector Optics · Veyron 3-12x44 SFP

€207,00 - €227,00

Item: SCOM-24

1. Ultra Short 245mm 9.7"
2. 4" Long Eye Relief, Turret Lock System
3. Fully Multi-Coated
4. 1/10 1cm MIL Adjust
5. Side Focus Min @ 10 Yds
6. Magnification: 3-12x
7. Objective Lens Dia: 44mm
8. Ocular Lens Dia: 33mm
9. Ocular Lens Length: 35mm
10. Exit Pupil: 14.6-3.6mm
11. Optics Coating: Fully-multi coated
12. Field of View: 35.1-8.7 feet@ 100 yds
13. Field of View: 6.7-1.7°
14. Eye Relief: 90-85mm (3.5-3.4")
15. Length: 245mm (9.7")
16. Weight: 500g (17.6oz)
17. Tube Dia: 30mm monotube
18. Click Value: 1/10MIL, 1cm
19. Elevation Range: 17.5MIL
20. Windage Range: 17.5MIL
21. Parallax Setting: 100 yds
22. Side Focus: 10 Yards to infinite
23. Reticle: Etched MPR-4
24. Finish: black Matte
25. Illumination: N/A
26. Distance between objective lens part and middle turret: 35mm (1.4'')
27. Length of middle turret part: 37mm (1.4'')
28. Distance between middle turret part to power ring: 30mm (1.2'')
29. Shock tested to 750g, waterproof at 1m
30. Fully nitrogen purged to eliminate any fogging of the lenses internally

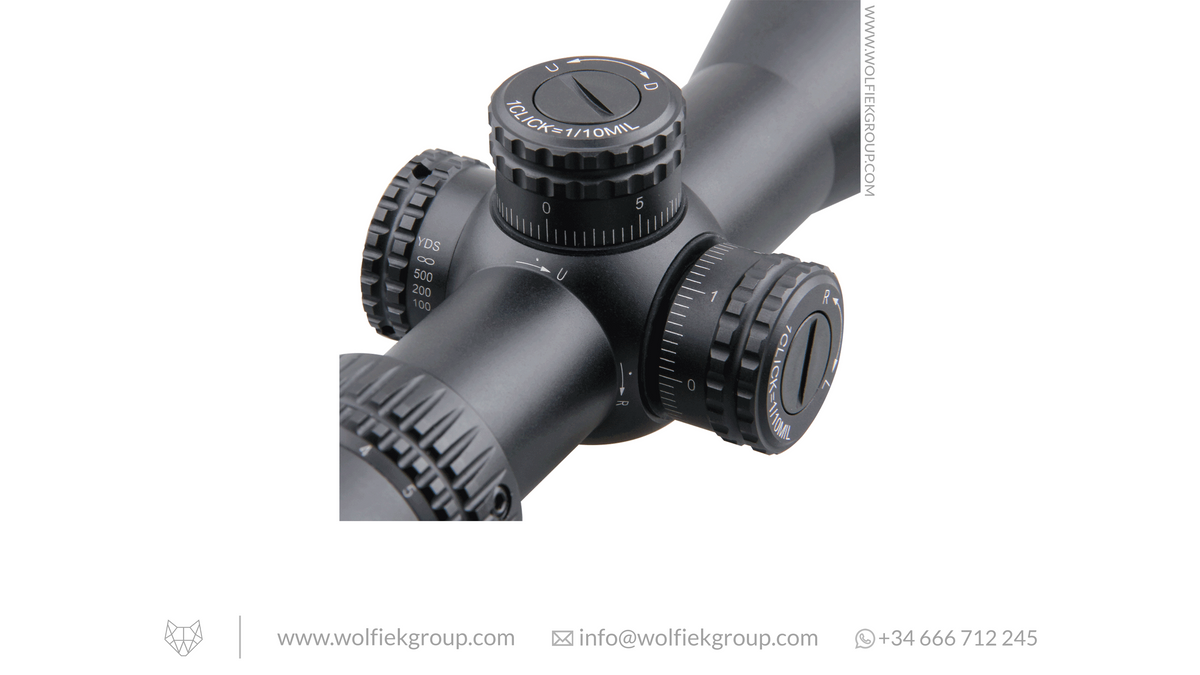

31. Turret Lock System
32. High quality 6061 T6 aircraft grade aluminum
33. Focus mark: 10, 15, 25, 50, 100, 200, 500 and infinite
34. Diopter compensation from fast-focus eyepiece (+2 to -2)
35. Including items: flip-up caps, honeycomb sunshade
36. Optional: weaver rings or dovetail rings
